Wireshark, formerly known as Ethereal, is one of the most powerful tools in a network
security analyst's toolkit. As a network packet analyzer, Wireshark can peer inside the
network and examine the details of traffic at a variety of levels, ranging from
connection-level information to the bits comprising a single packet. This flexibility and
depth of inspection allows the valuable tool to analyze security events and troubleshoot
network security device issues. It's also priced right: it's free!
Why sniff the network?
The phrase "sniff the network" may conjure Orwellian visions of a Big Brother network
administrator reading people's private email messages. Before anyone uses Wireshark, an
organization should ensure that it has a clearly defined privacy policy that spells out the
rights of individuals using its network, grants permission to sniff traffic for security
and troubleshooting issues, and states the organization's policy requirements for
obtaining, analyzing and retaining network traffic dumps. Anyone who uses a tool like
Wireshark without first obtaining the necessary permissions may quickly find themselves in
hot water legally.
However, as a security professional, there are two important reasons to sniff network
traffic. First, peering into the details of packets can prove invaluable when dissecting a
network attack and designing countermeasures. For example, if a denial of service occurs,
Wireshark can be used to identify the specific type of attack. The tool can then craft
upstream firewall rules that block the unwanted traffic. The second major use of Wireshark
is to troubleshoot security devices. Specifically, I regularly use it to troubleshoot
firewall rules. If systems running Wireshark are connected to either side of a firewall,
it's easy to see which packets successfully traverse the device and identify whether the
firewall is the cause of connectivity problems.
That being said, it's important to remember that Wireshark can be used for good or for
evil, as is the case with many security analyzers. In the hands of a network or security
administrator it's a valuable troubleshooting tool. In the hands of someone with
questionable ethics, however, it's a powerful eavesdropping tool that enables someone to
view every packet that traverses the network.
Installing Wireshark
Installing Wireshark is a piece of cake. Binary versions can be downloaded for Windows or Macintosh OS X. Wireshark is also available through the standard
software distribution systems for most flavors of Unix/Linux, and the source
code is also available for installation on other operating systems.
The Wireshark development team built the Windows version on top of the WinPcap packet
capture library. Those running Windows must install WinPcap if they haven't already. One
word of caution: If you're running an outdated version of WinPcap, remove it manually
through the "Add/Remove Programs" control panel before running the Wireshark installer.
The installation process uses a familiar wizard-based sequence that only asks two
significant questions: whether you want to install WinPcap and whether you want to start
the WinPcap Netgroup Packet Filter (NPF) service at startup. Selecting the latter option
allows users without administrator privileges to capture packets. If you don't start this
service, only administrators will be able to run Wireshark.
Running a simple packet capture

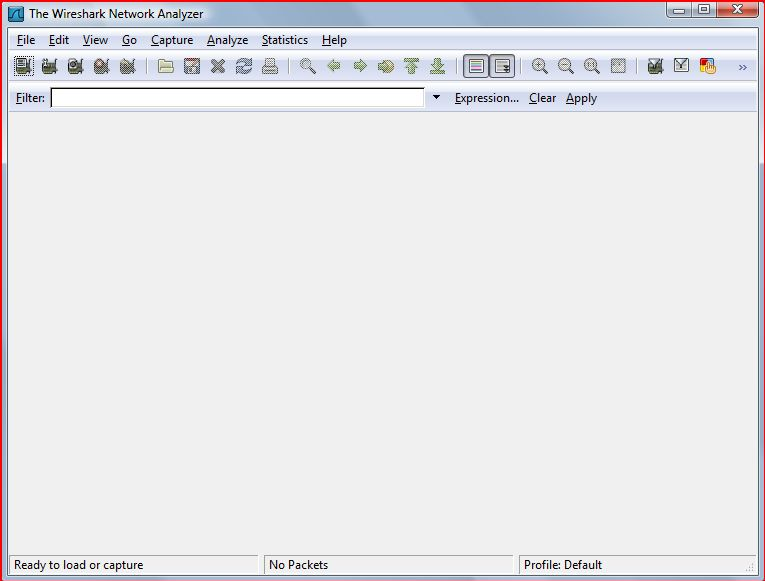

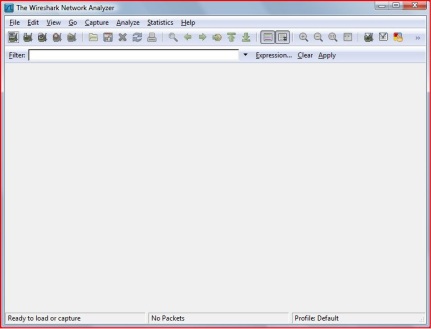

Once Wireshark is installed, start it up and you'll be presented with the blank screen
shown below:
See larger image

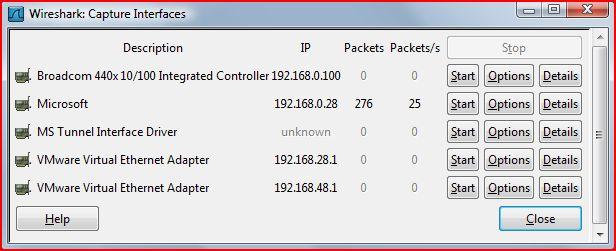

To start scanning, choose Interfaces from the Capture menu. You'll see a pop-up window
similar to the one below:
See larger image
If you'd like to configure advanced options -- like capturing a file, resolving MAC
addresses and DNS names, or limiting the time or size of the capture -- click the Options
button corresponding to the interface you wish to configure. Many of these options can
help to improve the performance of Wireshark. For example, you can adjust settings to
avoid name-resolution issues, as they will otherwise slow down your capture system and
generate large numbers of name queries. Time and size limits can also place limitations on
unattended captures. Otherwise, simply click the Start button next to the name of the

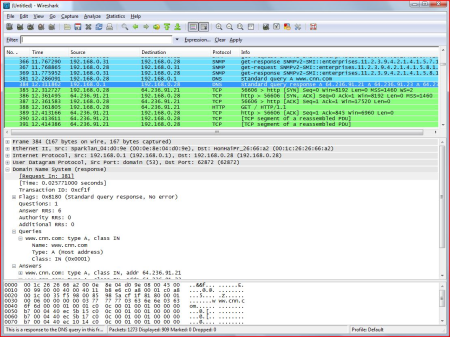

interface on which you wish to capture traffic. The Wireshark screen will immediately
begin filling up with traffic seen on the network interface, as shown below:
See larger image
Interpreting the results
Each line in the top pane of the Wireshark window corresponds to a single packet seen on
the network. The default display shows the time of the packet (relative to the initiation
of the capture), the source and destination IP addresses, the protocol used and some
information about the packet. You can drill down and obtain more information by clicking on
a row. This causes the bottom two window panes to fill with information.
The middle pane contains drill-down details on the packet selected in the top frame. The
"+" icons reveal varying levels of detail about each layer of information contained within
the packet. In the example above, I've selected a DNS response packet. I've expanded the
DNS response (application layer) section of the packet to show that the original was
requesting a DNS resolution for www.cnn.com, and this response is informing us that the
available IP addresses include 64.236.91.21. The bottom window pane shows the contents of
the packet in both hexadecimal and ASCII representations.
Color is your friend when analyzing packets with Wireshark. Notice in the example above
that each row is color-coded. The darker blue rows correspond to DNS traffic, the lighter
blue rows are UDP SNMP traffic, and the green rows signify HTTP traffic. Wireshark includes

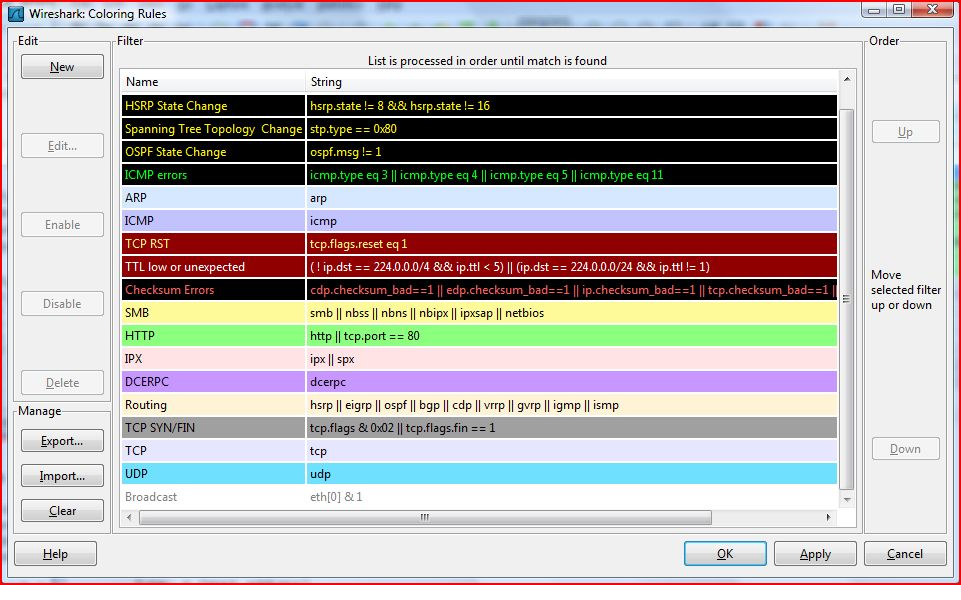

a complex color-coding scheme (which you can customize). The default settings appear below:
See larger image
That sums up the basics of using Wireshark to capture and analyze network traffic. The best
way to become an expert quickly is to get your hands dirty and start capturing network
traffic. There's no doubt you'll find that it can be a helpful tool for everything from
configuring firewall rules to spotting an intrusion. Remember, however, that you must
always have permission from the network owner before capturing traffic on any network. In
future tips I'll look at advanced Wireshark techniques, including writing traffic filters
to simplify packet analysis and exporting data for use in other applications.
